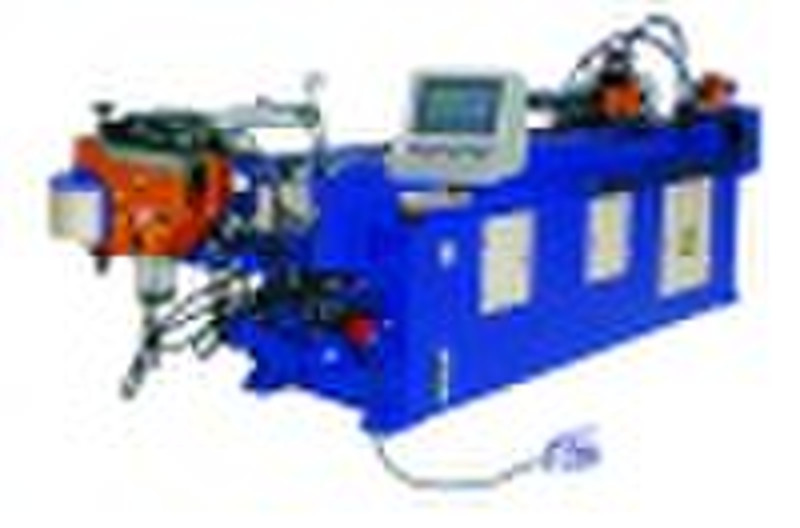

DW50NCBL 3D Pipe bending machine
David Huang
Contact person
Basic Information
DW38NCBL three-dimensional pipe bending machine, NC control, with auxiliary push air automatic rotation, the operation more convenient and efficient, widely used in various pipe processingSpecificationsModel DW50NCBLRemarksMaximum bending diameter ×thicknessΦ50mm×3mm1. Minimum bending radius according to pipe diameterMaximum bending radiusR250mm2. Maximum bending radius according to customer requirementsMinimum bend radiusR20mm3. Maximum mandrel length according to customer requirementsMaximum bending angle190°The maximum feed length2600mmBending speedMax 85°/sRotating speedMax 200°/sFeeding speedMachine fixed value Bending accuracy±0.15° Rotating accuracy±0.15°Feeding accuracyMachine fixed valueBending modeHydraulic BendingRotating motor power750wMax elbow bend pipe16 UnitMax storable section16 UnitOil pressure Motor Power7.5kwMax Hydraulic Pressure12 MpaMeasurement4900 x 1300 x 1300mm Weight of Machine2500kg
Delivery terms and packaging
Packaging Detail: The machine is packed in Iron Cases. Delivery Detail: The machine can be delivered in 20 days after the contract.
Port: ShangHai or other main ports,China
